Important Attributes
| Protection index | IP65 | Lighting solution services | Lighting distribution and circuit design, auto CAD design drawings |
| Warranty period (years) | 5 years | Origin | Jiangsu, China |
| Application | Road | Color temperature | 2700K (soft and warm white), 6000K (daylight alert), 3500K (warm white) |
| Light source | Other | Power supply | Photovoltaic, AC, Other |
| Emission Angle (°) | 140 | Certification | ce, CCC |
| Color Rendering Index (Ra) | 80 | Control method | Remote control |
| Input voltage (volts) | 12v DC | Material of the main body of the lamp | Aluminum alloy |
| Luminaire luminous efficacy (lm/w) | 120 | Luminaire luminous flux (lm) | 150 |
| Lamp lifespan (hours) | 50000 | Material | abs plastic |
| Required assembly | yes | Material of lampshade | Plastic |
| Support dimming | yes | Operating temperature (℃) | -20 - 50 |

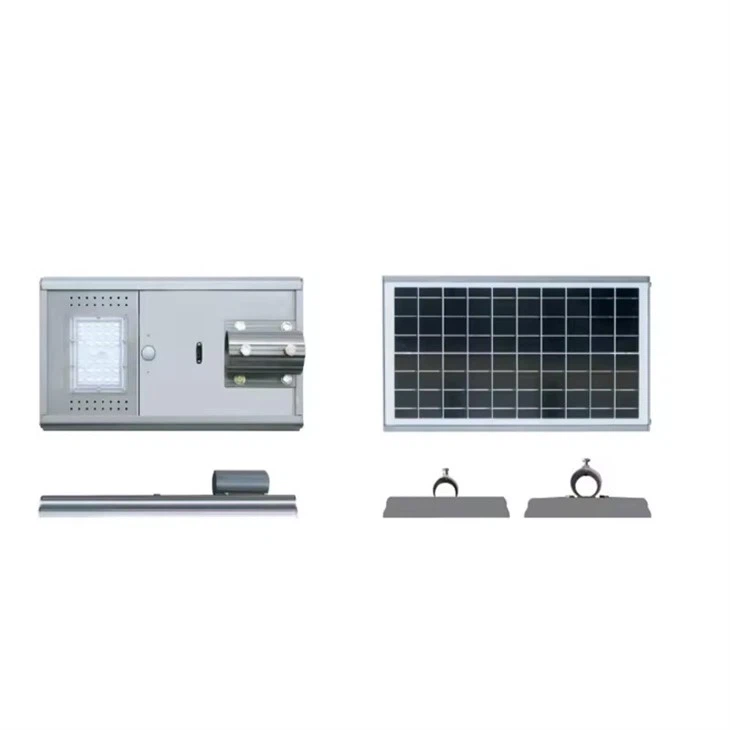

| Product name | All In One Solar Street Light | Keyword | Solar Street Light |
| Size | 453x260x50mm | Effectiveness | 98% |
| Total harmonic distortion | <15% | Protection level | IP65 |
| Wind resistance index | 10 | Lamp life | >50000h |
| Installation height | 4-6m | Waterproof | IP65 Waterproof |
Product Introduction
Technical Specifications:
Solar Panel: 18V 25W High-efficiency Monocrystalline Silicon
Battery Capacity: 12.8V 12Ah Grade A LiFePO4 Lithium Battery
LED Power: 20W High-brightness SMD LED (Up to 170lm/W)
Charging Time: 6-8 Hours under standard sunlight
Discharge Time: 12+ Hours (Full power) / 3-5 Rainy days autonomy
Product Size: 500mm x 230mm x 55mm (Compact design)
Pole Diameter: Suitable for 60mm - 76mm poles
Mounting Height: Recommended 3 to 4 meters
Packaging: Standard export carton with protective foam
B2B Customization Services:
OEM / ODM: Custom logo printing and specific technical adjustments.
Warranty: 3-year full system replacement warranty.
Support: IES files and Decano simulation reports for projects.
Product Advantages
* The design is simple and elegant, with a strong sense of technology.
* High brightness and long service life;
* Energy-saving lighting, with automatic brightness adjustment. It is equipped with a photosensitive system. The brightness increases when it is close and decreases when it is far away.
* It can achieve 365 days without turning off the lights, is lightweight and easy to install.
Specification
| Product Name | All-in-one/integrated solar street lamp |
| Size |
453x260x50mm |
| Efficacy |
98% |
| Total harmonic distortion |
<15% |
| Protection grade | IP65 grade |
| Working temperature |
Normal temperature type: -20℃ to +50℃ Low-temperature type: -45℃ to +50℃ |
| Wind resistance index |
10 |
| Bulb lifespan |
>50000h |
| Installation height |
4-6m |
