Important Attributes
| Protection index | IP65 | Lighting solution services | Lighting distribution and wiring design, Auto CAD design drawings |
| Warranty period (years) | 5 years | Origin | Jiangsu, China |
| Application | Road | Color temperature | 2700K (soft and warm white), 6000K (sunlight alert), 3500K (warm white) |
| Light source | Other | Power supply | Photovoltaic, AC, Other |
| Emission Angle (°) | 140 | Certification | ce, CCC |
| Color Rendering Index (Ra) | 80 | Control method | Remote control |
| Input voltage (volts) | 12v DC | Material of the main body of the lamp | Aluminum alloy |
| Luminaire luminous efficacy (lm/w) | 120 | Luminaire luminous flux (lm) | 150 |
| Lamp lifespan (hours) | 50000 | Material | abs plastic |
| Required assembly | yes | Material of lampshade | Plastic |
| Support dimming | yes | Operating temperature (℃) | -20 - 50 |
| Product name | All In One Solar Street Light | Keyword | Solar Street Light |
| Size | 655x260x50mm | Effectiveness | 98% |
| Total harmonic distortion | <15% | Protection level | IP65 |
| Wind resistance index | 10 | Bulb lifespan | >50000h |
| Installation height | 6-7m | Waterproof | IP65 |
Product Introduction

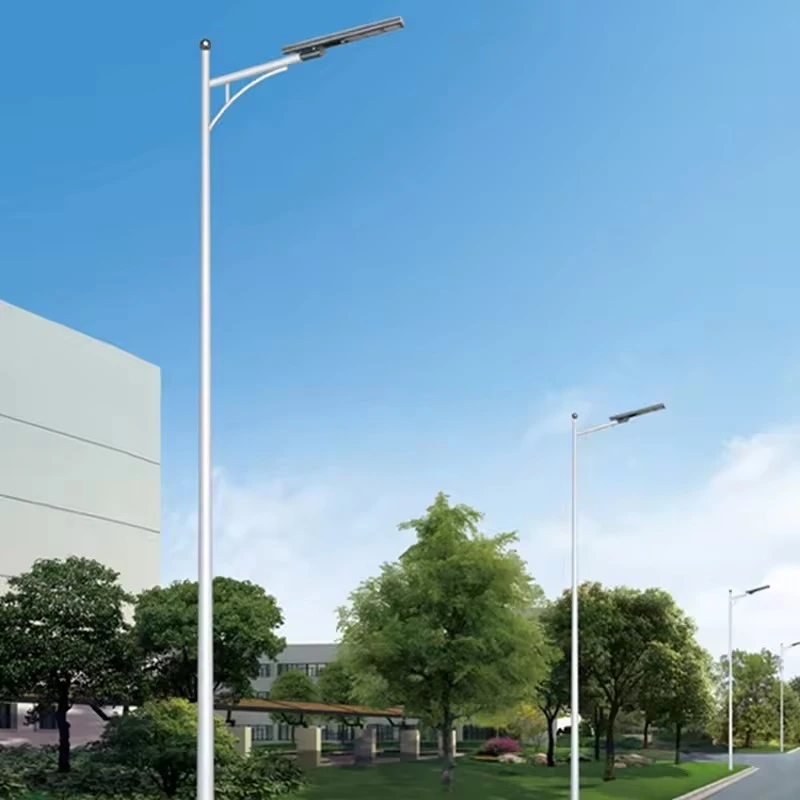

All In One 30W Solar Street Light For Highway
Product Overview
The All In One 30W Solar Street Light is an integrated solar lighting solution specially designed for highway auxiliary roads, ramps, and rural highways. It combines a high-efficiency LED chip, lithium battery, intelligent MPPT controller, and solar panel into one compact unit, ensuring easy installation and zero electricity cost.
This model is ideal for off-grid or remote highway projects where trenching and cabling are not practical.
Key Features
30W high-efficiency LED with stable brightness
All-in-one integrated design
Adjustable mounting angle for optimal solar charging
Intelligent light control + time control
IP66 waterproof protection
Die-cast aluminum housing for excellent heat dissipation
Maintenance-free operation
Technical Specifications
Power: 30W
Solar Panel: High-efficiency monocrystalline
Battery: Lithium battery (long cycle life)
Luminous Efficiency: ≥150 lm/W
Color Temperature: 3000K / 4000K / 6000K optional
Waterproof Level: IP66
Working Temperature: -20°C to +60°C
Lifespan: ≥50,000 hours
Highway Lighting Design Reference
For highway auxiliary roads, proper spacing ensures uniform illumination and safety.
1 Mile = 1609 meters
Recommended spacing for 30W solar highway lighting:
Single-side installation (35–40m spacing):
Approximately 40–46 units per mile
Double-side installation (40m spacing):
Approximately 80 units per mile
Product Advantages
1. No need to install batteries
2. No need to install solar panels
3. No need for complicated construction
4. Can be easily installed in a few minutes
5. Color and power can be customized
Lighting mode
1. People coming and going, day and night.
2. Intelligent power reduction during different time periods
The solar integrated street lamp is a lamp that integrates efficient photovoltaic components, high-capacity lithium battery packs, high-efficiency LED chips, light control, infrared, intelligent controller and lamp body.
Specification
| Product Name | Integrated Solar Street Lamp |
| Size | 655x260x50mm |
| Effectiveness | 98% |
| Total Harmonic Distortion | <15% |
| Protection level | IP65 |
| Working temperature | Normal temperature type: -20℃ to +50℃ Low temperature type: -45 to +50°C |
| Wind resistance index | 10 |
| Lamp bulb lifespan | >50000h |
| Installation height | 6-7m |
