Important Attributes
| Protection index | IP65 | Lighting solution services | Lighting distribution and circuit design, auto CAD design drawings |
| Warranty period (years) | 5 years | Origin | Jiangsu, China |
| Application | Road | Color temperature | 2700K (soft and warm white), 6000K (daylight alert), 3500K (warm white) |
| Light source | Other | Power supply | Photovoltaic, AC, Other |
| Emission Angle (°) | 140 | Certification | ce, CCC |
| Color Rendering Index (Ra) | 80 | Control method | Remote control |
| Input voltage (volts) | 12v DC | Material of the main body of the lamp | Aluminum alloy |
| Luminaire luminous efficacy (lm/w) | 120 | Luminaire luminous flux (lm) | 150 |
| Lamp lifespan (hours) | 50000 | Material | abs plastic |
| Required assembly | yes | Material of lampshade | Plastic |
| Support dimming | yes | Operating temperature (℃) | -20 - 50 |
| Product name | All In One Solar Street Light | Keyword | Solar Street Light |
| Size | 505x260x50mm | Effectiveness | 98% |
| Total harmonic distortion | <15% | Protection level | IP65 |
| Wind resistance index | 10 | Lamp life | >50000h |
| Installation height | 4-6m | Waterproof | IP65 Waterproof |
Product Introduction

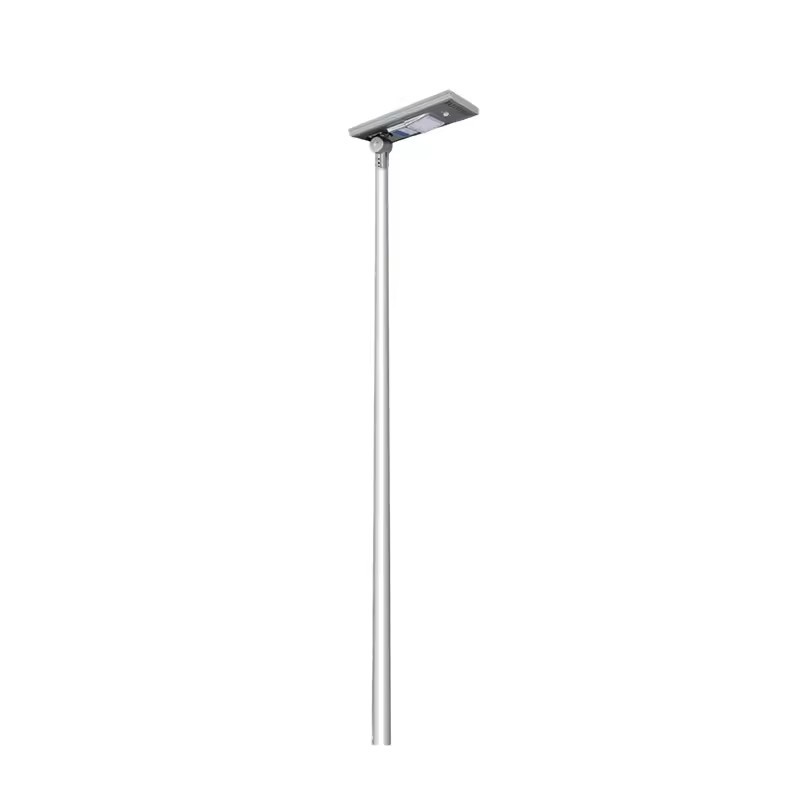

30W All-In-One Solar Street Light: Lighting Coverage Guide
Height: Best installed at a height of 5m to 6m (16ft to 20ft).
Coverage Area: Approximately 18m x 7m (59ft x 23ft) per lamp.
Length: The light stretches about 18 meters along the road.
Width: The light covers a width of about 7 meters across the road.
Spacing: For continuous illumination without dark spots, space the poles 15m to 20m apart.
Optics: Uses a specialized Bat-wing lens.
This lens is designed to stretch the light horizontally along the path rather than wasting it in a simple circle.
This improves safety and reduces the total number of poles required for your project.
Quick Comparison Table
| Feature | Specification |
| Ideal Height | 5m - 6m |
| Beam Shape | Rectangular (Bat-wing) |
| Max Ground Coverage | 126 Square Meters |
| Recommended Spacing | 15m - 20m |
Product advantages
1. No battery installation is required
2. No need to install solar panels
3. There is no need to carry out cumbersome construction again
4. It can be easily installed within a few minutes
5. Color and power can be customized
Lighting mode
1. People come to stand out and leave for a long time (overnight).
2. Intelligent power reduction at different time periods
Solar integrated street lamps are a type of lighting fixture that integrates high-efficiency photovoltaic modules, large-capacity lithium battery packs, high-efficiency LED chips, light control, infrared, intelligent controllers and the main body of the lamp.
Specification
| Product Name | Multi-in-one solar street lamp |
| Size |
505x260x50mm |
| Efficacy |
98% |
| Total harmonic distortion |
<15% |
| Protection grade | IP65 grade |
| Working temperature |
Normal temperature type: -20℃ to +50℃ Low-temperature type: -45℃ to +50℃ |
| Wind resistance index |
10 |
| Bulb lifespan |
>50000h |
| Installation height |
4-6m |
